Solar Flat Roof
SINGLE SIDED BALLASTED SYSTTEM
CF101 CM SOLAR BALLASTED SYSTEM
Smart and safe flat roof solution
Completely innovative component-reduced low ballast unilateral elevation system for variable orientation of south-east to south-west with same yield performance.
Ideal solution for flat roofs with low ballast potential and with or without parapet
Easy for installation with very few highly pre-assembled components.
Installation time optimization with highly pre-assembled components
Available at 10°.12°.15° elevation angle.
Aerodynamically optimized with wind breaker on reverse enabling minimal ballasted weight.
Easy for transportation with foldable triangles saving space.
COMPONENT
DATA
INSTALLATION NOTES

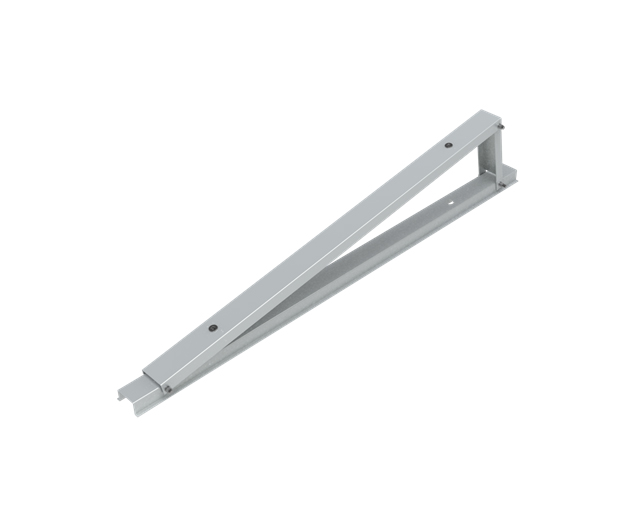

Foldable triangle
Middle clamp
Foldable Triangle

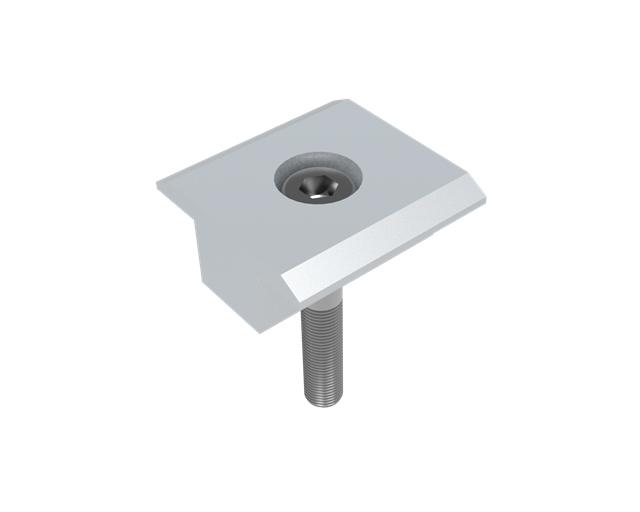

End clamp

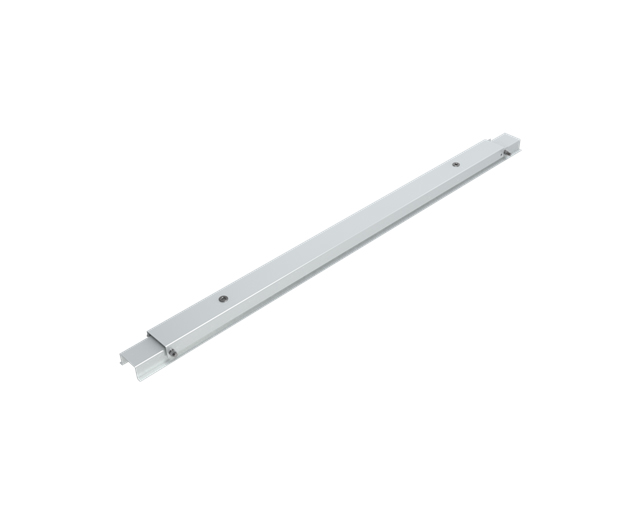

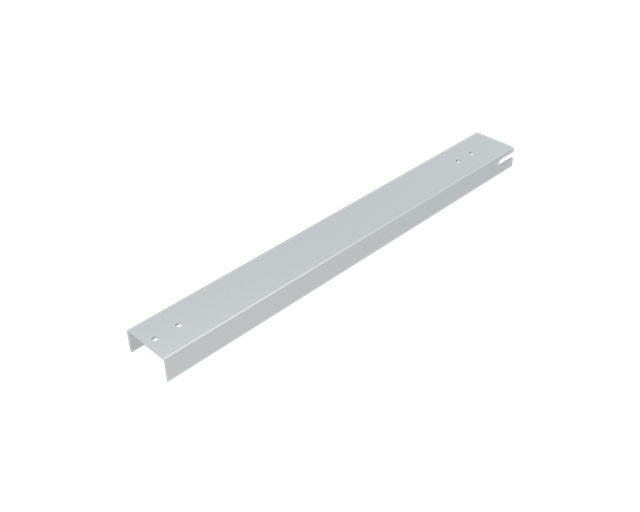

Connection

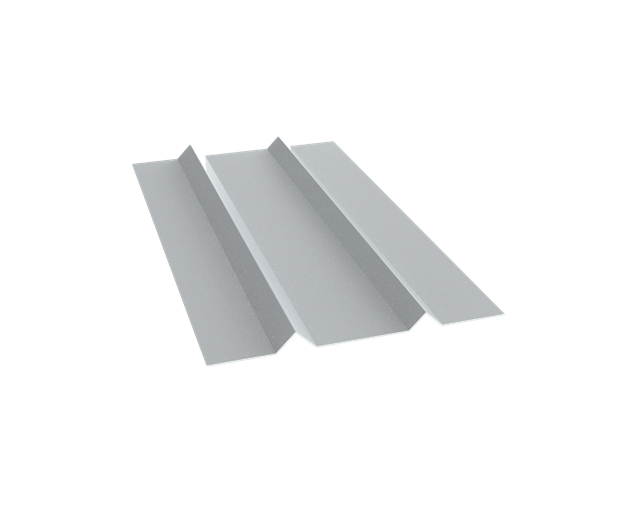

Wind deflector

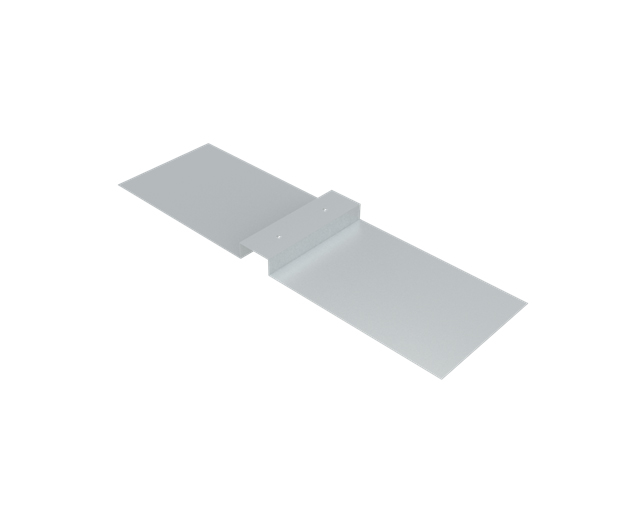

Ballast pan
DOUBLE SIDED BALLASTED SYSTTEM
CF103 CM SOLAR BALLASTED SYSTEM
Smart and safe flat roof solution.
Completely innovative component-reduced low ballast unilateral elevation system for variable orientation of west and east with same yield performance.
Ideal solution for flat roofs with low ballast potential and with or without parapet
Easy for installation with very few highly pre-assembled components.
Installation time optimization with highly pre-assembled components
Available at 10°.12°.15° elevation angle.
Aerodynamically optimized with wind breaker on reverse enabling minimal ballasted weight.
Easy for transportation with foldable triangles saving space.
